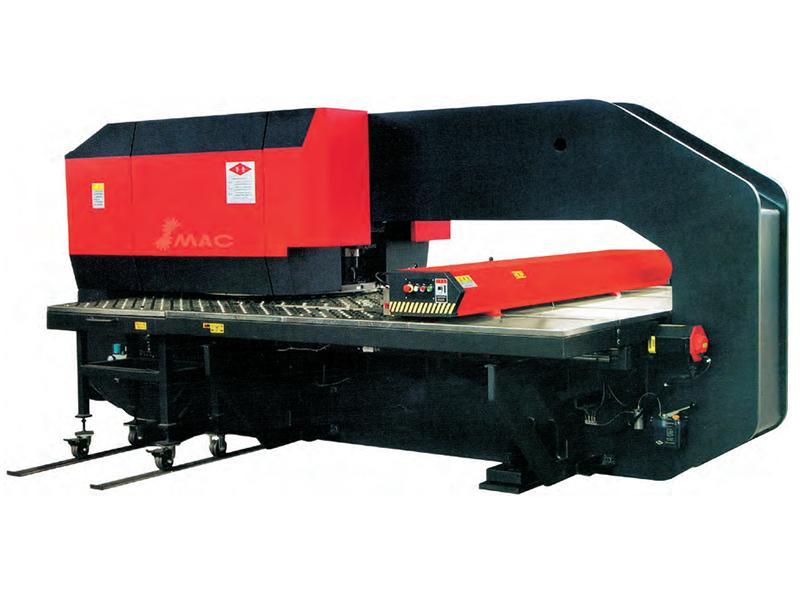

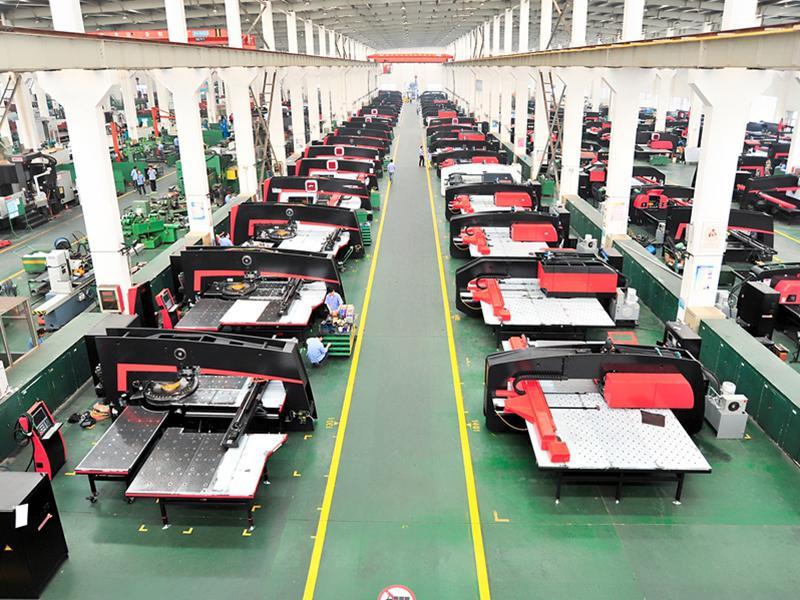

CNC Turret Punch Machine (Hydraulic)

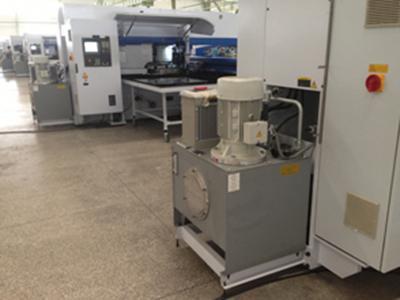

- The hydraulic sheet metal turret punch press uses an international standard hydraulic system with a proportionate servo valve with fully closed-loop control. It is highly distinguishable, and users can adjust the stroke and speed.
- The punch speed is 1000HPM. It is suitable for processing louvers, knock-off holes, rolling ribs, rolling shear and coining through the precise control of the bottom dead center.
- The turnplate with a bushing is a process done in pairs in order to ensure the coaxilaity of the upper and lower die.
- Internationally matched pneumatic, hydraulic and electric components ensure performance reliability of the machine.
- The vacuum absorption waste device ensures that the waste material is accurately dropped during high speed punching, and completely eliminates any waste rebound, thus improving the punch press service life.
- A large lead ball screw and linear guideway that meets international standards ensures a highly precise metal process.
- The closed O-type frame welded using a steel plate gives the punch press a high rigidity and ensures very little deformation.
- The punch press features an automatic clamp protection function, which prevents punching in the protective area and damage to the mold and clamp, thus ensuring continuous machine operation.
- The clamp moves automatically with the processed sheet in order to avoid processing dead zones.

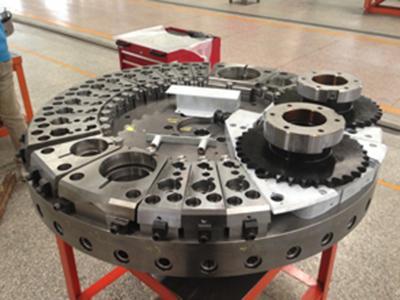

- The rotary workstation uses a highly precise turbine in conjunction with a worm mechanism to ensure the high precision performance. The maximum diameter reaches 88.9mm, though it can be expanded.
- The punch press uses an automatic, centralized lubrication device, which reduces friction during processes. This increases the equipment service life.
- The punch press features an integrated beam structure. The carriage and the beam are one centralized component, which increases the rigidity and ensures a precise location. The machine is extremely stable during high speed feeding, and eliminates deflection of the X and Y axes.
Technical Specifications
| Parameter | |||
| Matric force (ton) | 30 | ||
| Max. sheet metal dimension (mm) | 1250×1500 | 1250×5000 | 1500×5000 |
| Feeding speed (m/min) | X:60 Y:60 | X:60 Y:60 | X:60 Y:60 |
| Workstation number (no.) | 32 | 32 | 32 |
| Rotary workstation number (no.) | 2 | 2 | 2 |
| Control shaft number (no.) | 4 | 4 | 4 |
| Sheet metal thickness (mm) | 6.35 | 6.35 | 6.35 |
| Max. marking frequency (hpm) | / | / | / |
| Max. punching frequency (hpm) | 600 | 600 | 600 |
| Max. jig frequency /25mm step pitch hpm | X:350 Y:250 | X:320 Y:220 | X:300 Y:200 |
| Max. punching diameter (mm) | φ88.9 | φ88.9 | φ88.9 |
| Main motor power (kw) | 11 | 11 | 11 |
| Pitch precision (mm) | ±0.1 | ±0.1 | ±0.1 |
| CNC system | FANUC | FANUC | FANUC |
| Turnplate speed (rpm) | 30 | 30 | 30 |
| Outline dimension (mm) | 5020×2680×2340.5 | 5020×5000×2340.5 | 5520×5000×2340.5 |
| Type | Closed streamline | Closed streamline | Closed |
| Parameter | ||||
| Matric force (ton) | 50 | 50 | ||
| Max. sheet metal dimension(mm) | 1250×1500 | 1500×5000 | 1250×1500 | 1500×5000 |
| Feeding speed (m/min) | X:60 Y:60 | X:60 Y:60 | X:60 Y:60 | X:60 Y:60 |
| Workstation number (no.) | 32 | 32 | 32 | 32 |
| Rotary workstation number (no.) | 2 | 2 | 2 | 2 |
| Control shaft number (no.) | 4 | 4 | 4 | 4 |
| Sheet metal thickness (mm) | 6.35 | 6.35 | 8 | 8 |
| Max. marking frequency (hpm) | / | / | / | / |
| Max. punching frequency (hpm) | 300 | 300 | 300 | 300 |
| Max. jig frequency /25mm step pitch hpm | X:200 Y:150 | X:200 Y:150 | X:200 Y:150 | X:200 Y:150 |
| Max. punching diameter (mm) | φ88.9 | φ88.9 | φ88.9 | φ88.9 |
| Main motor power (kw) | 15 | 15 | 15 | 15 |
| Pitch precision (mm) | ±0.15 | ±0.15 | ±0.15 | ±0.15 |
| CNC system | FANUC | FANUC | FANUC | FANUC |
| Turnplate speed (rpm) | 30 | 30 | 30 | 30 |
| Outline dimension (mm) | 5020×5000×2340.5 | 5020×5000×2340.5 | 5020×5000×2340.5 | 5520×5000×2340.5 |
| Type | Closed | Closed | Closed | Closed |
| Parameter | ||
| Matric force (ton) | 60 | |
| Max. sheet metal dimension(mm) | 1250×1500 | 1500×5000 |
| Feeding speed (m/min) | X:60 Y:60 | X:60 Y:60 |
| Workstation number (no.) | 32 | 32 |
| Rotary workstation number (no.) | / | / |
| Control shaft number (no.) | 3 | 3 |
| Sheet metal thickness (mm) | 8 | 8 |
| Max. marking frequency (hpm) | / | / |
| Max. punching frequency (hpm) | 200 | 200 |
| Max. jig frequency /25mm step pitch hpm | X:150 Y:100 | X:150 Y:100 |
| Max. punching diameter (mm) | φ88.9 | φ88.9 |
| Max. marking frequency (hpm) | 15 | 15 |
| Pitch precision (mm) | ±0.2 | ±0.2 |
| CNC system | FANUC | FANUC |
| Turnplate speed (rpm) | 30 | 30 |
| Outline dimension (mm) | 5020×2680×2340.5 | 5020×5000×2340.5 |
| Type | Closed | Closed |
| Parameter | ||
| Matric force (ton) | 80 | |
| Max. sheet metal dimension(mm) | 1250×1500 | 1500×5000 |
| Feeding speed (m/min) | X:60 Y:60 | X:60 Y:60 |
| Workstation number (no.) | 32 | 32 |
| Rotary workstation number (no.) | / | / |
| Control shaft number (no.) | 3 | 3 |
| Sheet metal thickness (mm) | 8 | 8 |
| Max. marking frequency (hpm) | / | / |
| Max. punching frequency (hpm) | 150 | 150 |
| Max. jig frequency /25mm step pitch hpm | X:150 Y:100 | X:150 Y:100 |
| Max. punching diameter (mm) | φ88.9 | φ88.9 |
| Max. marking frequency (hpm) | 15 | 15 |
| Pitch precision (mm) | ±0.2 | ±0.2 |
| CNC system | FANUC | FANUC |
| Turnplate speed (rpm) | 30 | 30 |
| Boundary dimension (mm) | 5020×2680×2340.5 | 5020×5000×2340.5 |
| Type | Closed | Closed |
