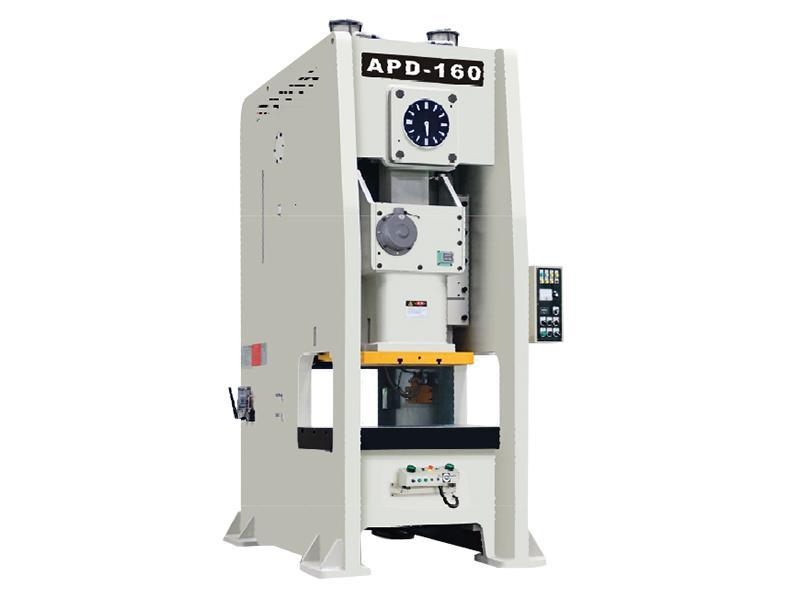

APD 80-260 Ton Precision Metal Stamping Press

APD 80-260 Ton Precision Metal Stamping Press

Characteristic

APD 80-260 Ton precision metal stamping press was developed and manufactured with a strong steel structure and welded using high quality steel plate. The stamping machine tool features stable precision and reliability after eliminating the internal stress of the material.
The transmission center and metalworking machine tool center are located in the same spot, so that the stamping press can optimize precision and stability.
A symmetrical balancer is used to ensure operational stability.
The precision of die height adjustment is as high as 0.1 mm, so the stamping press can be operated safely, conveniently and reliably.
The parts, like bent axle, gear systems, connecting rod, etc., have high integrality and abrasive resistance after hard-anodized and grinding process.
Sensitive and reliable clutch/brake, excellent double solenoid valve and overload protector are used to ensure the precision and safety of the start and stopping of the slide.
This straight side frame press features an integrative rack, which makes it suitable for processing precise progressive dies.
The stamping press avoids the defect of C frame presses, reducing maintenance costs during the metalworking process.
The stamping machine tool has strong steel structure, and the slide way is located in the center line of the joint. These characteristics mean it has long-term dynamic stability precision and long mold service life.
The bottom area of the puncher pin is 15-25% larger than that of model C stamping presses. This is beneficial for increasing the number of die engineering and additional values of the metalworking process.
It features a high torque wet clutch, delivering long service life and low maintenance costs.
The multifunctional electronic control system results in high operational safety.
A series of automation equipment provides convenience in operation.

Technical Specifications

Name	Model	APD-80
Type		Type V	Type H
Capacity	Ton	80
Rated tonnage point	mm	4	2
Stroke	mm	150	70
Die height	mm	340	380
Stroke per minute	s.p.m	35-80	80-120
Slide adjustment	mm	80
Slide area	mm	560×420×70
Bolster area	mm	760×550×90
Main motor	kw.p	7.5
Slide adjust device	HP	Electrical driving
Air pressure	kg/cm2	6
Dimension (length×width×height) Presses dimension	mm	1300×1890×3000
Presses weight	Ton	7.8
Presses precision		GB(JIS) 1 class
Die cushion capacity	Ton	3.6
Stroke of cushion die	mm	70
Die cushion effective area	mm2	450×310

Name	Model	APD-110
Type		Type V	Type H
Capacity	Ton	110
Rated tonnage point	mm	6	3
Stroke	mm	180	200
Die height	mm	360	410
Stroke per minute	s.p.m	30-60	60-90
Slide adjustment	mm	80
Slide area	mm	650×470×80
Bolster area	mm	900×600×110
Main motor	kw.p	11
Slide adjust device	HP	Electrical driving
Air pressure	kg/cm2	6
Dimension (length×width×height) Presses dimension	mm	1420×1985×3200
Presses weight	Ton	10.5
Presses precision		GB(JIS) 1 class
Die cushion capacity	Ton	6.3
Stroke of cushion die	mm	80
Die cushion effective area	mm2	500×350

Name	Model	APD-160
Type		Type V	Type H
Capacity	Ton	160
Rated tonnage point	mm	6	3
Stroke	mm	200	90
Die height	mm	460	510
Stroke per minute	s.p.m	20-50	40-70
Slide adjustment	mm	100
Slide area	mm	700×550×90
Bolster area	mm	980×880×140
Main motor	kw.p	15
Slide adjust device	HP	Electrical driving
Air pressure	kg/cm2	6
Dimension (length×width×height) Presses dimension	mm	1600×2200×3500
Presses weight	Ton	17.8
Presses precision		GB(JIS) 1 class
Die cushion capacity	Ton	10
Stroke of cushion die	mm	80
Die cushion effective area	mm2	650×420

Name	Model	APD-200
Type		Type V	Type H
Capacity	Ton	200
Rated tonnage point	mm	6	3
Stroke	mm	200	100
Die height	mm	460	510
Stroke per minute	s.p.m	20-50	50-70
Slide adjustment	mm	110
Slide area	mm	850×630×90
Bolster area	mm	1140×820×160
Main motor	kw.p	18
Slide adjust device	HP	Electrical driving
Air pressure	kg/cm2	6
Dimension (length×width×height) Presses dimension	mm	1750×2500×3900
Presses weight	Ton	25.3
Presses precision		GB(JIS) 1 class
Die cushion capacity	Ton	14
Stroke of cushion die	mm	100
Die cushion effective area	mm2	710×480

Name	Model	APD-260
Type		Type V	Type H
Capacity	Ton	260
Rated tonnage point	mm	7	3.5
Stroke	mm	250	3.5
Die height	mm	500	150
Stroke per minute	s.p.m	20-50	550
Slide adjustment	mm	120
Slide area	mm	950x700x100
Bolster area	mm	1500x840x180
Main motor	kw.p	22
Slide adjust device	HP	Electrical driving
Air pressure	kg/cm2	6
Dimension (length×width×height) Presses dimension	mm	2780x1850x4470
Presses weight	Ton	32
Presses precision		GB(JIS) 1 class
Die cushion capacity	Ton	14
Stroke of cushion die	mm	100
Die cushion effective area	mm2	810×480

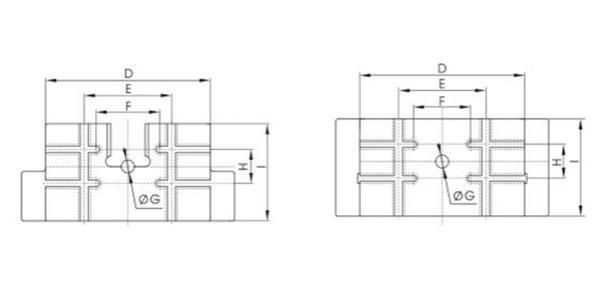

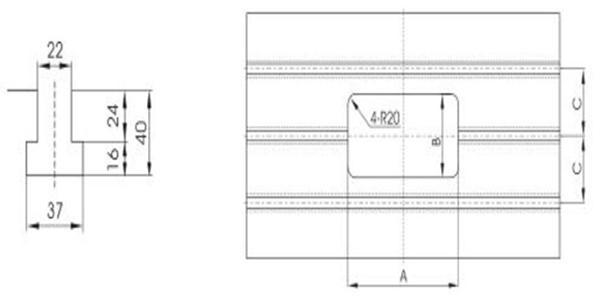

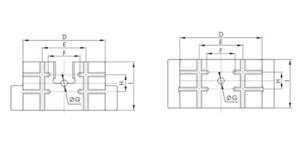

Outline Dimension

Model	A	B	C	D	E	F	G	H	I
APD-80	360	180	150	560	300	220	Φ50	180	420
APD-110	400	200	160	650	300	220	Φ50	220	470
APD-160	440	220	220	700	300	175	Φ65	220	550
APD-200	480	240	280	850	420	200	Φ65	300	630
APD-260	520	260	290	950	420	200	Φ65	300	700

Standard and Optional Configuration

Standard	Optional
Inverter	Electrical automatic lubrication system
Hydraulic over-load protector	Pneumatic die cushion device
Slide adjust device	Preset counter
Die height indicator	Foot switch
Balance device	Quick die change device (Die lifter, clamp and die arm sepjes )
Rotary cam switch	Slide knock-out device
Crank angle indicator	Misfeed detection consent
Electrical stroke counter	Power supply
Air source receptacle	Auti-vibration press mount
Against over-run safety device	Photo-electronic safety device
Maintenance tool box	Feeder

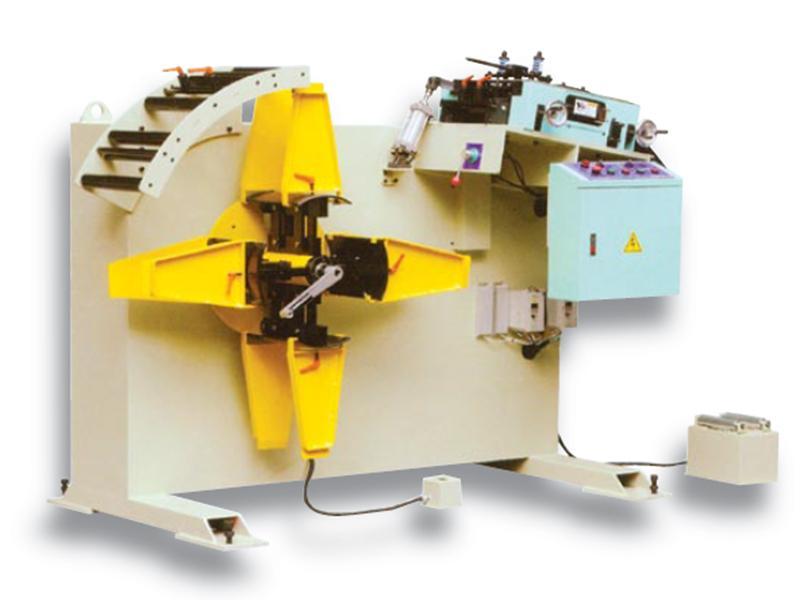

	Uncoiler

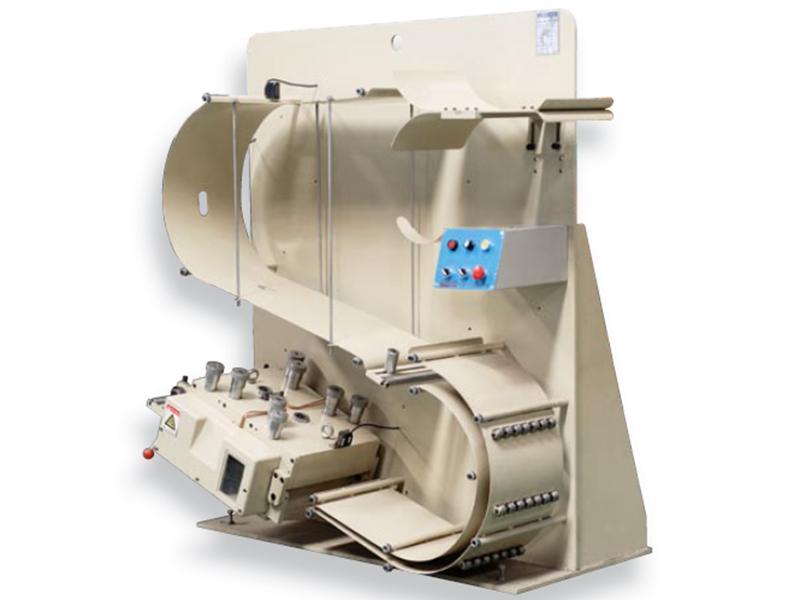

	Leveler
	Mechanism hand
	Die room light
	Left (right) feeding device
	PAC 100 counter system
	Human-computer counter system

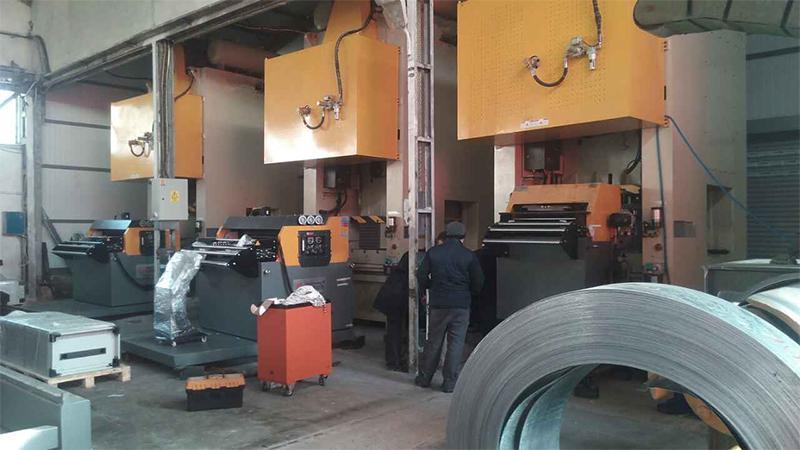

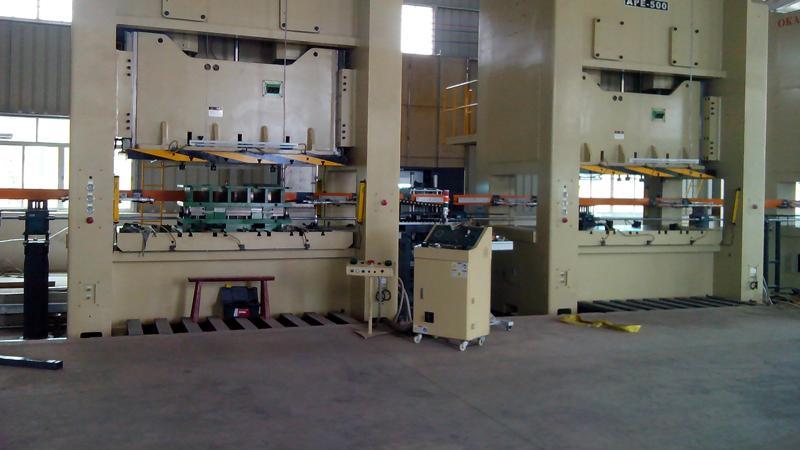

Customer Case about metal stamping press
