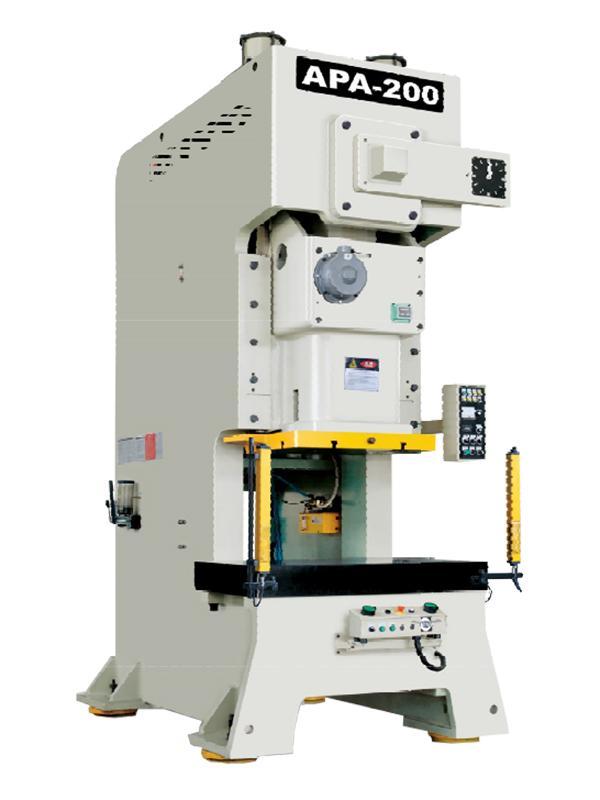

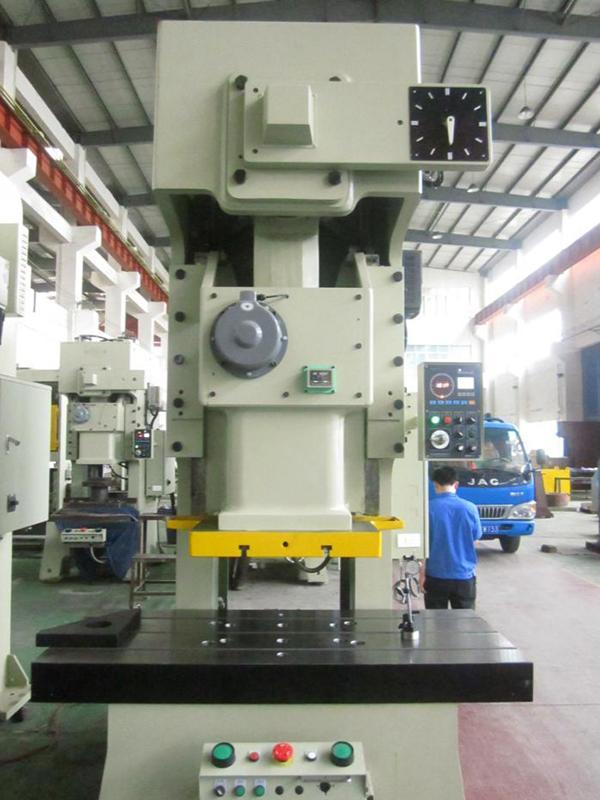

APA 15-260 Ton Precision Metal Stamping Press

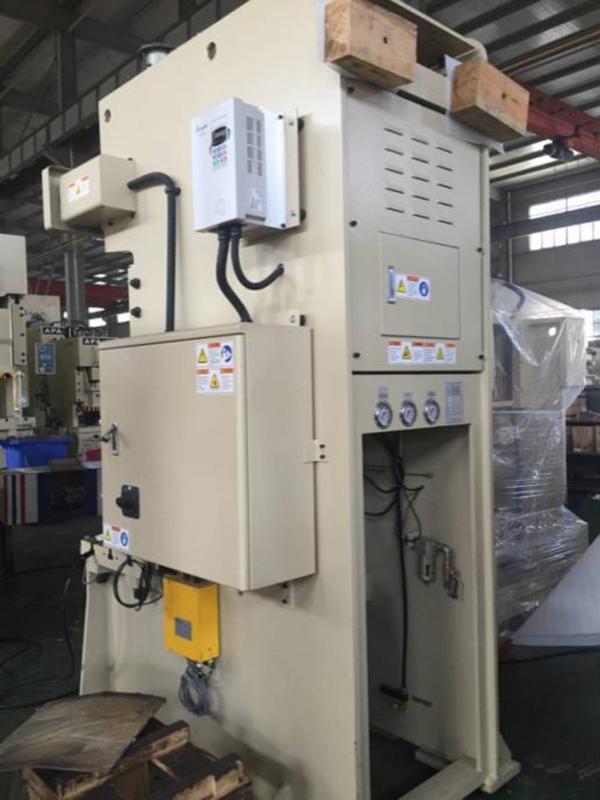

  • APA 15-260 Ton Precision Metal Stamping Press
  • APA 15-260 Ton Precision Metal Stamping Press
  • APA 15-260 Ton Precision Metal Stamping Press
Characteristic
  • The APA 15-260 ton precision metal stamping press was developed and manufactured with a strong steel structure and welded using high quality steel plate. The metalworking machine tool features stable precision and reliability after eliminating the internal stress of the material.
  • The transmission center and metalworking machine tool center are located in the same spot, so that the stamping press can optimize precision and stability.
  • Two symmetrical balancers are used to ensure the stability of operation.
  • The precision of die adjustment is as high as 0.1 mm, so the stamping machine can be operated safely and reliably.
  • Parts like the bent axle, gear set, connecting rod, etc., are designed for high integrality and abrasive resistance following a hard-anodized and grinding process.

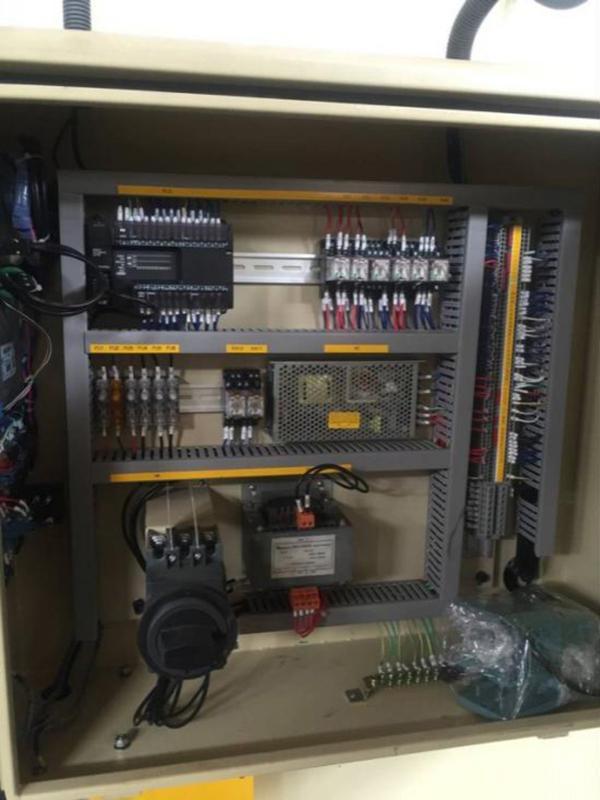

  • Sensitive and reliable clutch/brake, excellent double solenoid valve and overload protector are used to ensure the precision and safety of the start and stopping of the slide.
  • APA 15-260 Ton Precision Metal Stamping Press
  • APA 15-260 Ton Precision Metal Stamping Press
Technical Specifications
Name Model APA-15
Type Ton Type V
Capacity 15
Rated tonnage point mm 1
Stroke number per minute Speed range s.p.m 120-180
Stable speed s.p.m 130
Stroke mm 60
Die height mm 200
Slide adjustment mm 50
Slide area mm 300×220×50
Bolster area mm 680×300×70
Shank hole mm 38.1
Main motor kw 2.2
Slide adjust device HP Manual operation
Air pressure kg/cm2 6
Presses precision GB(JIS) 1 class
Presses dimension mm 1236×830×1920
Presses weight Ton 1.8
Name Model APA-25A
Type Ton Type V
Capacity 25
Rated tonnage point mm 3.2
Stroke number per minute Speed range s.p.m 60-140
Stable speed s.p.m 110
Stroke mm 80
Die height mm 195
Slide adjustment mm 50
Slide area mm 300×220×50
Bolster area mm 680×300×70
Shank hole mm 38.1
Main motor kw 3.7
Slide adjust device HP Manual operation
Air pressure kg/cm2 6
Presses precision GB(JIS) 1 class
Presses dimension mm 1280×850×2200
Presses weight Ton 2.1
Die cushion capacity Ton -
Stroke of die cusion mm -
Die cushion effective
area 		mm2 -
Name Model APA-25
Type Ton Type V Type H
Capacity 25
Rated tonnage point mm 3.2 1.6
Stroke number per minute Speed range s.p.m 60-140 130-200
Stable speed s.p.m 110
Stroke mm 70 30
Die height mm 195 215
Slide adjustment mm 50
Slide area mm 300×220×50
Bolster area mm 680×300×70
Shank hole mm 38.1
Main motor kw 3.7
Slide adjust device HP Manual operation
Air pressure kg/cm2 6
Presses precision GB(JIS) 1 class
Presses dimension mm 1280×850×2200
Presses weight Ton 2.1
Name Model APA-35
Type Ton Type V Type H
Capacity 35
Rated tonnage point mm 3.2 1.6
Stroke number per minute Speed range s.p.m 40-120 110-180
Stable speed s.p.m 85
Stroke mm 70 40
Die height mm 220 235
Slide adjustment mm 55
Slide area mm 360×250×50
Bolster area mm 800×400×70
Shank hole mm 38.1
Main motor kw 3.7
Slide adjust device HP Manual operation
Air pressure kg/cm2 6
Presses precision GB(JIS) 1 class
Presses dimension mm 1380×900×2400
Presses weight Ton 3
Die cushion capacity Ton 2.3
Stroke of die cusion mm 50
Die cushion effective
area 		mm2 300×230
Name Model APA-45
Type Ton Type V Type H
Capacity 45
Rated tonnage point mm 3.2 1.6
Stroke number per minute Speed range s.p.m 40-100 100-150
Stable speed s.p.m 75
Stroke mm 80 50
Die height mm 250 265
Slide adjustment mm 60
Slide area mm 400×300×60
Bolster area mm 850×440×80
Shank hole mm 38.1
Main motor kw 5.5
Slide adjust device HP Manual operation
Air pressure kg/cm2 6
Presses precision GB(JIS) 1 class
Presses dimension mm 1600×950×2500
Presses weight Ton 3.8
Die cushion capacity Ton 2.3
Stroke of die cusion mm 50
Die cushion effective
area 		mm2 300×230
Name Type APA-60 APA-80 APA-110 APA-160 APA-200 APA-260
Model Ton Type V Type H Type V Type H Type V Type H Type V Type H Type V Type H Type V Type H
Capacity
60 80 110 160 200 260
Rated tonnage point mm 4 2 4 2 6 3 6 3 6 3 7 3.5
Stroke number per minute Speed range s.p.m 35 - 90 80 - 120 35 - 80 80 - 120 30 - 60 60 - 90 20 - 50 40 - 70 20 - 50 50 - 70 20 - 40 40 - 50
Stable speed s.p.m 65 65 50 35 35 30
Stroke mm 120 60 150 70 180 80 200 90 200 100 250 150
Die height mm 310 340 340 380 360 410 460 510 460 510 500 550
Slide adjustment mm 75 80 80 100 110 120
Slide area mm 500×360×70 560×420×70 650×470×80 700×550×90 850×630×90 950×700×100
Bolster area mm 900×500×80 1000×550×90 1150×600×110 1250×800×140 1400×820×160 1500×840×180
Shank hole mm 50 50 50 65 65 65
Main motor kw 5.5 7.5 11 15 18 22
Slide adjust device HP Manual operation
Air pressure kg/cm2 6 6 6 6 6 6
Presses precision
GB(JIS) 1 class GB(JIS) 1 class GB(JIS) 1 class GB(JIS) 1 class GB(JIS) 1 class GB(JIS) 1 class
Presses dimension mm 1600×1000×2800 1800×1180×2800 1900×1300×3200 2300×1400×3800 2615×1690×4075 2780×1850×4470
Presses weight Ton 5.6 6.5 9.6 16 23 32
Die cushion capacity Ton 3.6 3.6 6.3 10 14 14
Stroke mm 70 70 80 80 100 100
Die cushion effective
area 		mm2 350×300 450×310 500×350 650×420 710×480
810×480

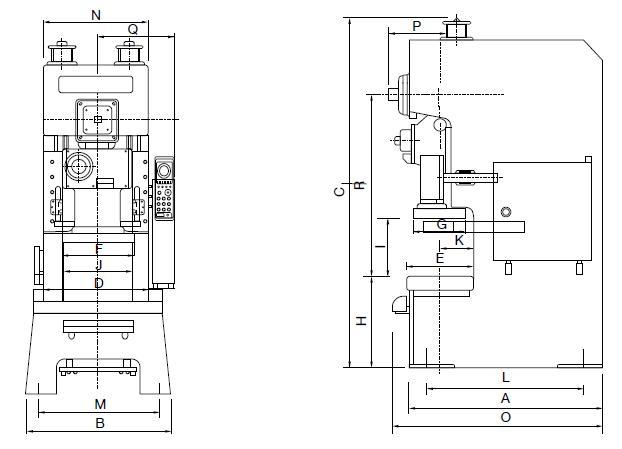

Outline Dimension
Outline Dimension
Specification APA-25 APA-35 APA-45 APA-60 APA-80 APA-110A APA-160 APA-200 APA-260
A 1100 1200 1400 1420 1595 1720 2140 1440 2605
B 840 900 950 1000 1170 1290 1390 1690 1850
C 2135 2345 2245 2780 2980 3195 3670 4075 4470
D 680 800 850 900 1000 1150 1250 1400 1500
E 300 400 440 500 550 600 800 820 840
F 470 520 560 700 770 910 990 1130 1130
G 250 285 340 400 420 470 550 630 700
H 800 790 800 795 840 840 910 1030 1030
I 260 290 320 420 480 530 650 650 750
J 444 488 502 526 534 616 660 790 900
K 160 205 225 255 280 305 405 415 430
L 980 1040 1170 1180 1310 1420 1760 2040 2005
M 700 800 810 890 980 1100 1200 1400 1560
N 540 620 670 720 780 920 1000 1160 1300
O 1275 1375 1575 1595 1770 1895 1895 2615 2780
P 278 278 313 333 448 488 545 593 688
Q 447 560 585 610 620 685 725 805 875
R 935 1073 1130 1378 1506 1650 1960 2188 2460
Configuration
Standard Optional
Hydraulic over-load protector Inverter
Manual operation slide adjust device (TP below 60 ) High performance wet clutch & brake

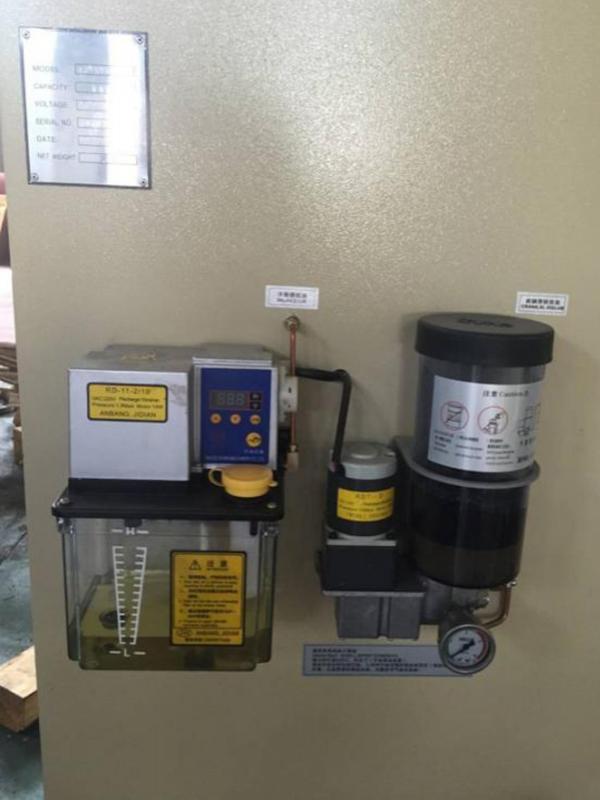

Slide adjust device (TP above 60 ) Electrical automatic lubrication system
Mechanical die height indicator (TP below 60 ) Pneumatic die cushion device
Electric die height indicator (TP above 60 ) Foot switch
Balance device Quick die change device (Die lifter, clamp and die arm)
Rotary cam switch Slide knock-out device
Crank angle indicator Misfeed detection consent
Electrical stroke counter Power supply
Air source receptacle Auto-vibration press mount
Against over-run safety device Photo-electronic safety device
Blowing equipment Die room light
Maintenance tool box Touch pad counter system

Automatic feeding device (Feeder, Rack, Correction machine)

Mechanism hand

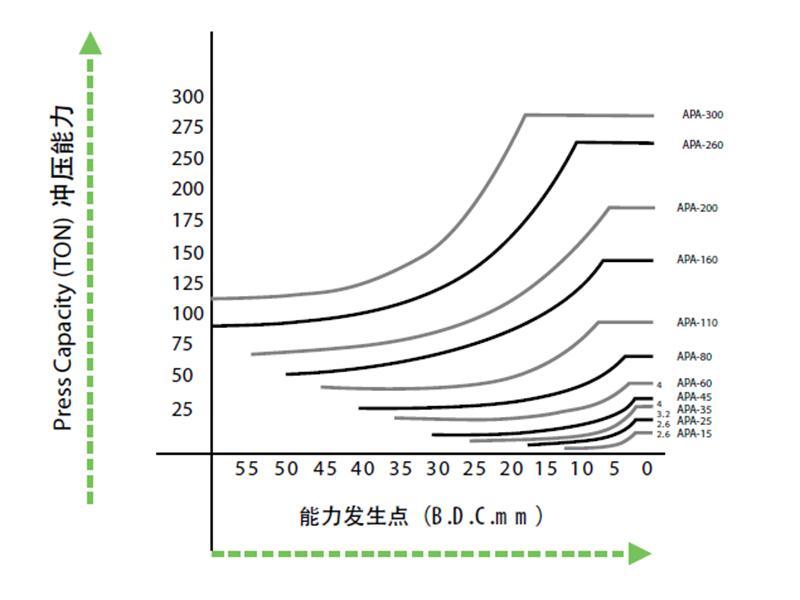

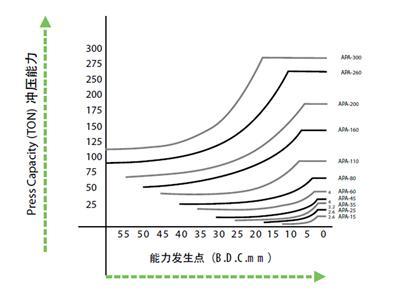

  • Capacity Curve
    Capacity Curve

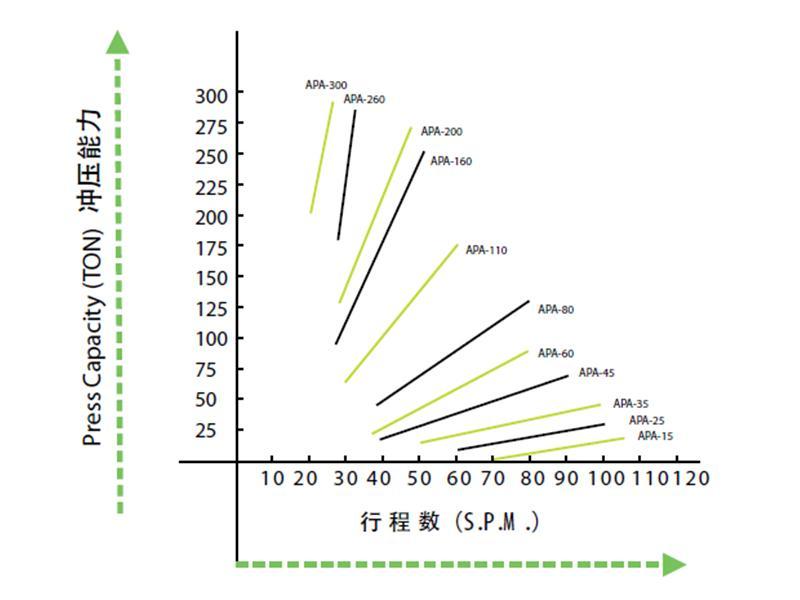

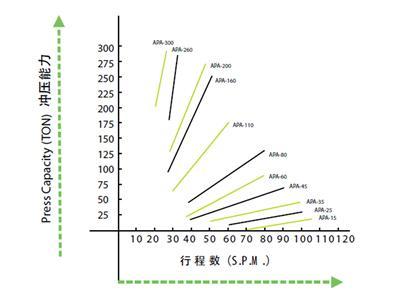

  • Capacity Curve
    Capacity Curve

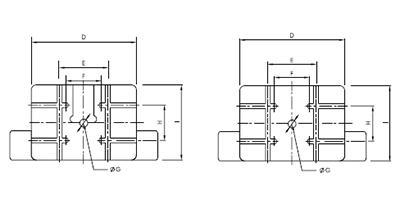

  • Slide tableSlide table

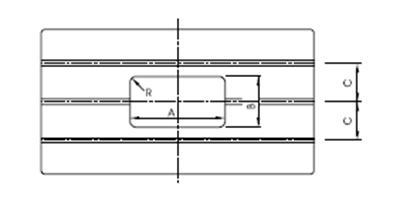

  • Bolster tableBolster table
Model A B C D E F G H L T type ditch
APA-15 240 120 90 300 - 150 Φ38.1 80 220 Ⅰ
APA-25A 240 120 90 300 - 150 Φ38.1 80 220 Ⅰ
APA-25A 240 120 90 300 - 150 Φ38.1 80 220 Ⅰ
APA-35 280 140 120 360 - 160 Φ38.1 100 250 Ⅰ
APA-45 300 150 120 400 - 210 Φ38.1 120 300 Ⅰ
APA-60 320 160 150 500 220 220 Φ50 160 360 Ⅱ
APA-80 360 180 150 560 300 220 Φ50 180 420 Ⅱ
APA-110 400 200 150 650 300 220 Φ50 220 470 Ⅱ
APA-160 440 220 160220 700 300 175 Φ65 220 550 Ⅱ
APA-200 480 240 280 850 420 200 Φ65 300 630 Ⅱ
APA-260 520 260 290 950 420 200 Φ65 300 700 Ⅱ

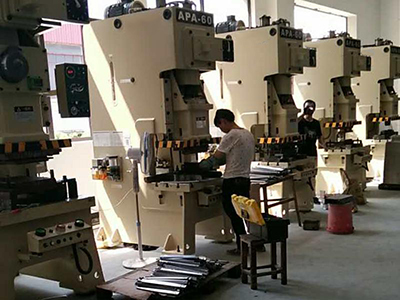

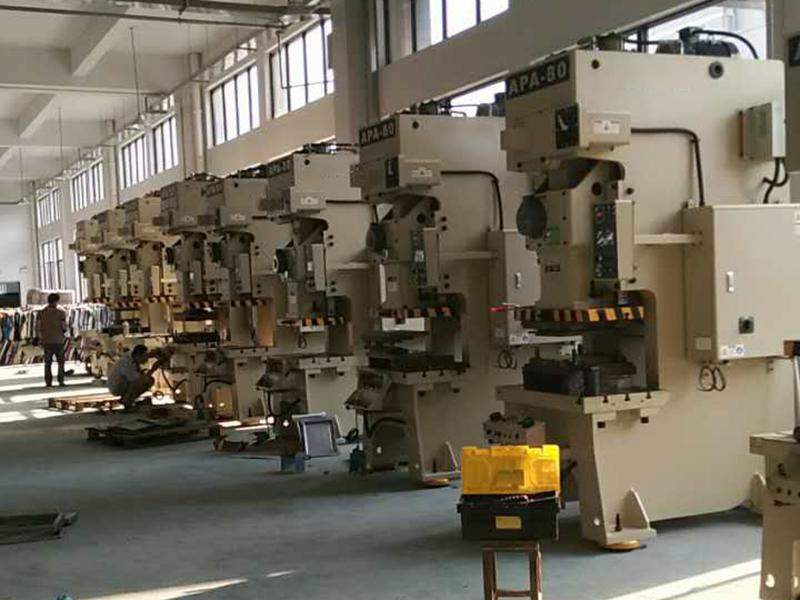

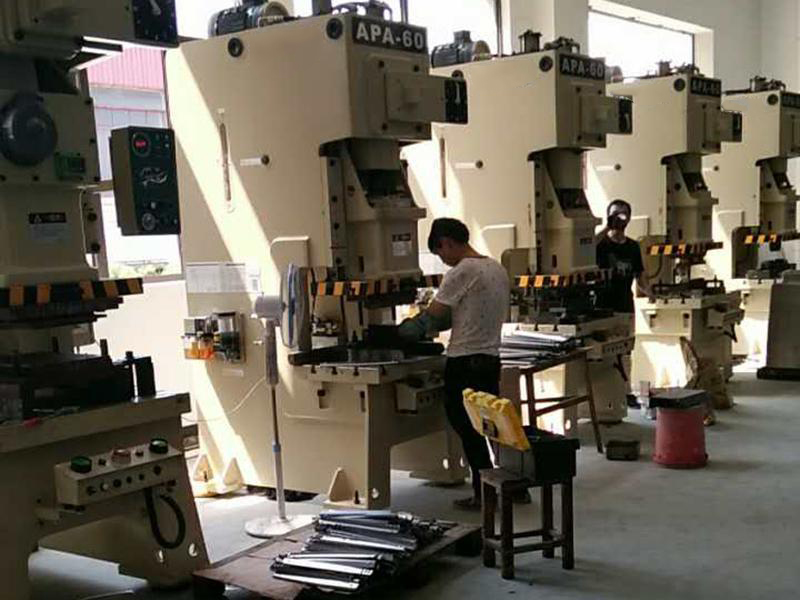

Factory
  • Factory
  • Factory
