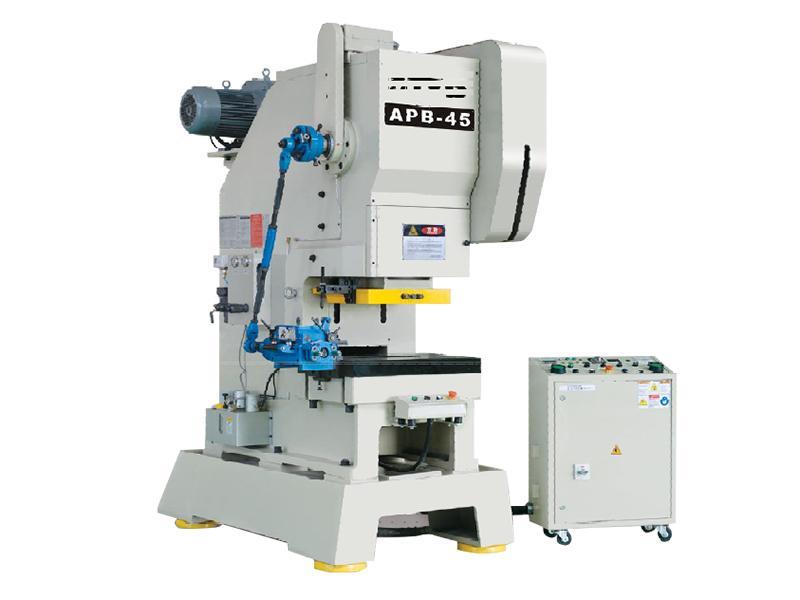

APB 25-45 Ton High Speed Precision Metal Stamping Press

APB 25-45 Ton High Speed Precision Metal Stamping Press
Characteristic
  • The metal stamping press is manufactured using strong steel casting. It features high precision, high rigidity and seismic resistance after heat treatment and eliminating the internal stress of the casting.
  • The slide is on the long slide way to ensure the precision and stability of the stamping press during operation.
  • The transmission parts of the stamping press adopt a centralized testing and automatic forced lubrication system, which can achieve real-time control and self-protection function.
  • Sensitive and reliable clutch/brake, excellent double solenoid valve were used to ensure the precision and safety of the start and stop of slide.
  • This precision high speed stamping press is designed with a complete electric circuit, meeting European standards.
  • The punch is designed with a 3 point pivot system composed by guide post and plunger piston, which is useful for long-term precision operation.
  • Touch screen not only makes it easy to set and operate, but also can display the fault information for quick and easy maintenance.
Technical Specifications
Item Unit APB-25
Capacity Ton 25
Stroke mm 300
Die height mm 200
Stroke per minute S.P.M 0(200)-400
Slide adjustment mm 50
Slide area mm 300× 240× 50
Bolster area mm 530× 310× 70
Bed opening (LR×FB) mm 300× 160
Main motor KW 2.2
Max. weight of
upper die 		kg 30
Presses dimension mm 1100× 760× 1800
Presses weight ton 1.8
Presses precision GB(JIS) 1 class-J
Item Unit APB-45
Capacity Ton 45
Stroke mm 30
Die height mm 240
Stroke per minute S.P.M 0(200)-400
Slide adjustment mm 75
Slide area mm 460×340×70
Bolster area mm 720×460×80
Bed opening (LR×FB) mm 360×200
Main motor KW 55
Max. weight of
upper die 		kg 150
Presses dimension mm 1700×1000×2400
Presses weight ton 3.7
Presses precision GB(JIS) 1 class-J

Standard Configuration
1. Sticking release device
2. Automatically-recirculating lubrication Device
3. Manual slide adjusting device
4. Electrical stroke counter
5. Programmable logical controller
6. Balance device
7. Rotary cam switch
8. Crank angle indicator
9. Air source receptacle

Optional Configuration
1. Air ejector
2. Auti-vibration press mount
3. Inverter
4. Die room light
5. Preset counter
6. Feeder
7. Misfeed detection consent
8. Electronic cam displayer
9. PAC 100 counter system
10. Human-machine counter system
