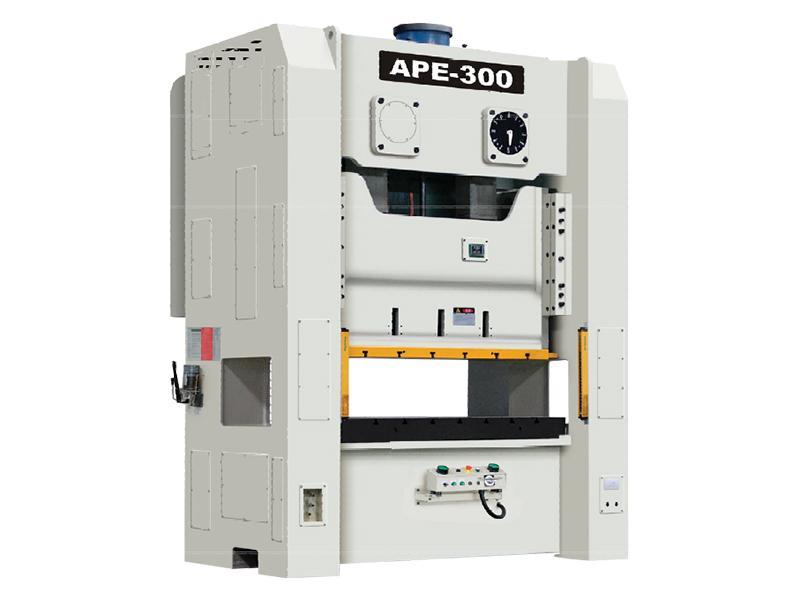

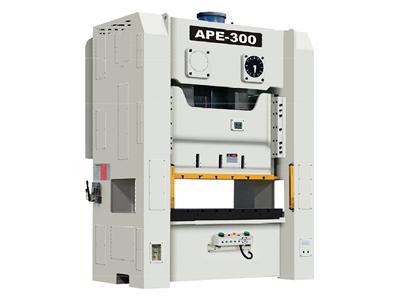

APE 160-400 Ton Precision Metal Stamping Press

APE 160-400 Ton Precision Metal Stamping Press
Characteristic
  • APE series precision metal stamping press was developed and manufactured with a strong steel structure and welded using high quality steel plate. The metalworking machine tool features stable precision and reliability after eliminating the internal stress of the material.
  • Two symmetrical balancers are used to ensure the stability of operation.
  • The precision of die height adjustment is as high as 0.1 mm, so the stamping press can be operated safely, conveniently and reliably.
  • The parts, like bent axle, gear systems, connecting rod, etc., have high integrality and abrasive resistance after hard-anodized and grinding process.
  • Sensitive and reliable clutch/brake, excellent double solenoid valve and overload protector are used to ensure the precision and safety of the start and stopping of the slide.
  • This straight side frame press features an integrative rack, which makes it suitable for processing precise progressive dies.
  • The stamping press avoids the defect of C frame presses, reducing maintenance costs during the metalworking process.
  • It features a high torque wet clutch, delivering long service life and low maintenance costs.
  • The multifunctional electronic control system results in high operational safety.

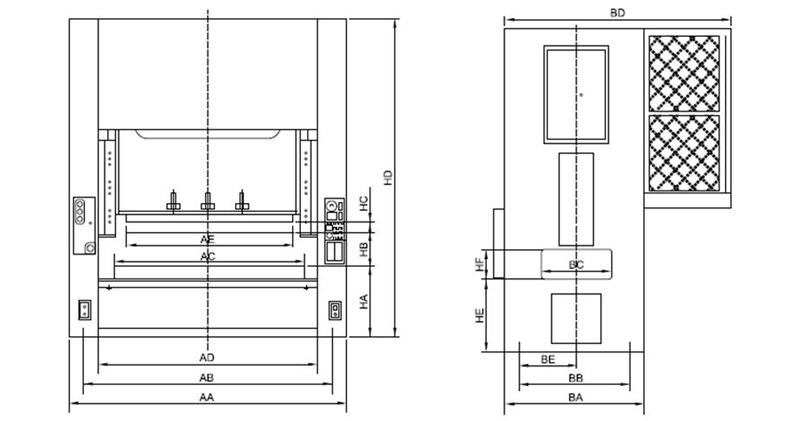

Technical Specifications
APE 160-400 Ton Precision Metal Stamping Press
Specification Model APE-160
Model Ton S H
Rated tonnage point mm 6 3
Stroke mm 180 130
Stroke per minute s.p.m 30-55 40-85
Die height mm 450 400
Slide adjustment mm 100
Slide area mm 1600 × 650
Bolster area mm 1800 × 760
Side opening mm 700 × 450
Main motor Kw 15
Slide adjust device Kw × P 0.75× 4
Air pressure kg/cm2 5
Presses precision GB(JIS) 1 class
Specification Model APE-200
Model Ton S H
Rated tonnage point mm 6 3
Stroke mm 250 150
Stroke per minute s.p.m 20-50 35-70
Die height mm 500 450
Slide adjustment mm 120
Slide area mm 1850 × 750
Bolster area mm 2200 × 940
Side opening mm 900 × 600
Main motor Kw 18
Slide adjust device Kw × P 0.75× 4
Air pressure kg/cm2 5
Presses precision GB(JIS) 1 class
Specification Model APE-250
Model Ton S H
Rated tonnage point mm 7 3
Stroke mm 280 170
Stroke per minute s.p.m 20-40 30-60
Die height mm 550 450
Slide adjustment mm 120
Slide area mm 2100 × 900
Bolster area mm 2500 × 1000
Side opening mm 900 × 600
Main motor Kw 22
Slide adjust device Kw × P 1.5× 4
Air pressure kg/cm2 5
Presses precision GB(JIS) 1 class
Specification Model APE-300
Model Ton S H
Rated tonnage point mm 7 3
Stroke mm 300 170
Stroke per minute s.p.m 20-35 30-50
Die height mm 550 450
Slide adjustment mm 120
Slide area mm 2200 × 900
Bolster area mm 2500 × 1000
Side opening mm 900 × 600
Main motor Kw 30
Slide adjust device Kw × P 1.5 × 4
Air pressure kg/cm2 5
Presses precision GB(JIS) 1 class
Specification Model APE-400
Model Ton S H
Rated tonnage point mm 7
Stroke mm 300
Stroke per minute s.p.m 20-30
Die height mm 550
Slide adjustment mm 120
Slide area mm 3100 × 1000
Bolster area mm 3200 × 1000
Side opening mm 900 × 600
Main motor Kw 30
Slide adjust device Kw × P 1.5 × 4
Air pressure kg/cm2 5
Presses precision GB(JIS) 1 class
Standard Configurations and Optional Configurations
Standard Optional
High performance dry clutch & brake High performance wet clutch & brake
Standard operating system of kiston Die cushion
Operation mode selection/off/inching Vs motor
Safety one stroke /continuous Touch screen devices
Hydraulic overload protector Safety light curtain
Overrun detector Slide knock-out device
Dual solenoid valve Main motor reversing circuit
Missfeed detector Foot switch
Motorized slide adjustment Safety die block with plug
Digital die height indicator(unit 0.1mm) Portable 2-hand push
Motorized grease pump Inverter
Total counter,6 digits Anti-vibration amounts
Preset counter,6 digits Quick die change system
Maintenance counter,4 digits Upper die clamper
Life counter ,6 digits Lower die clamper
Electronic rotary cam switch(6 spare channel) Die lifter
Air ejector 1/2" one channel Die arm
Air source receptacle 1/2" two channel Anchor bolts & foundation plates
Missfeed detection circuit Automatic feed equipment
Power receptacle(available only for single phase 110V power source wiring by user) NC straightener feed c/w uncoiler (3 in 1)

NC roller feeder

Straightener c/w uncoiler (2 in 1)

Straightener

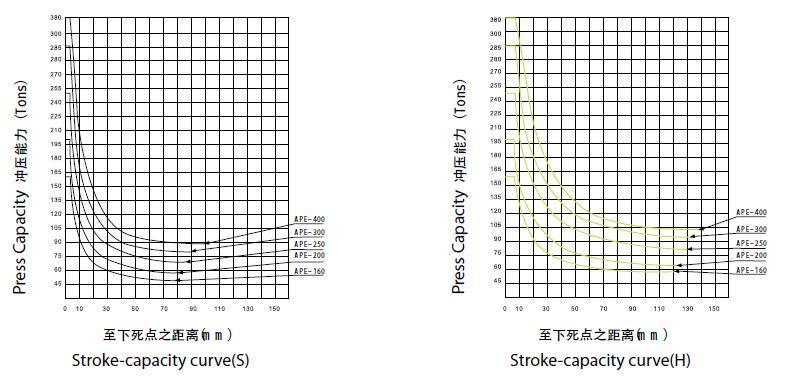

Capacity curve

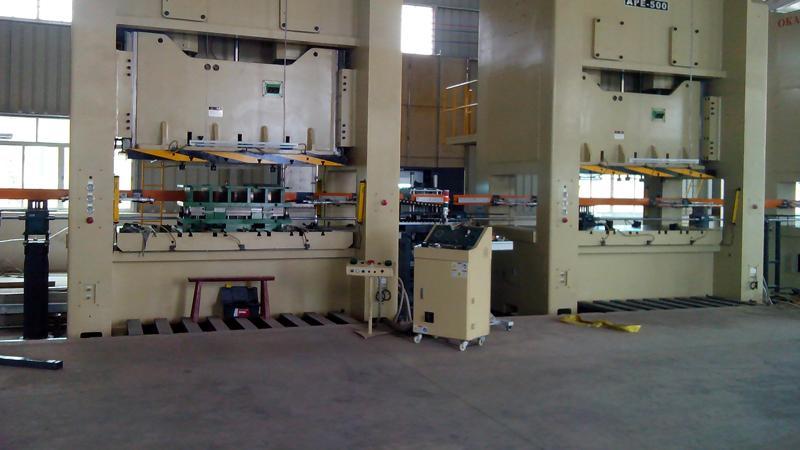

Customer Case about metal stamping press

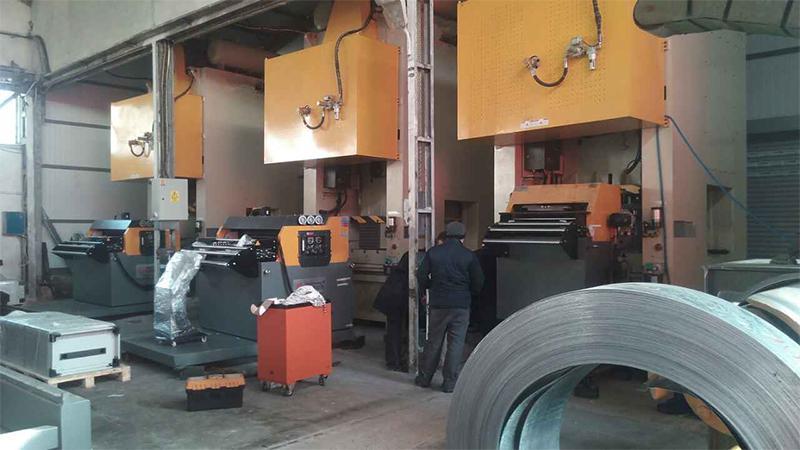

Customer Case about metal stamping press
