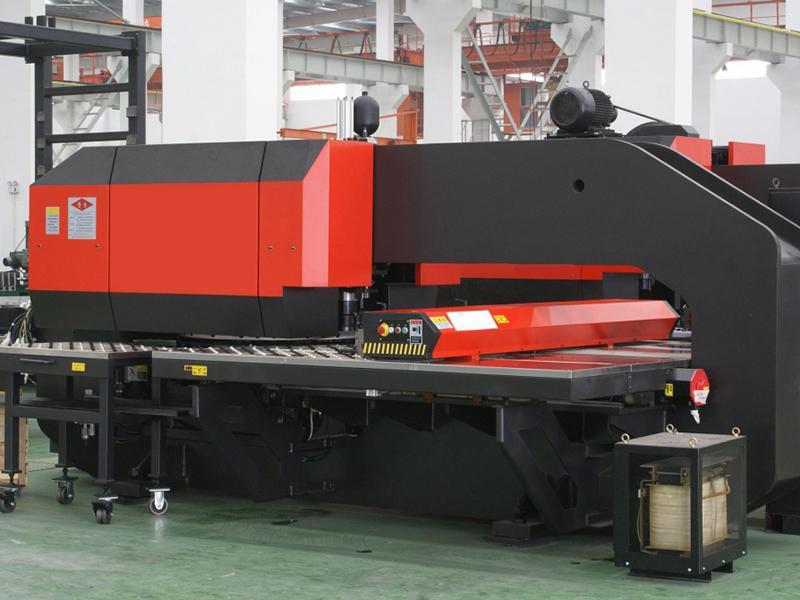

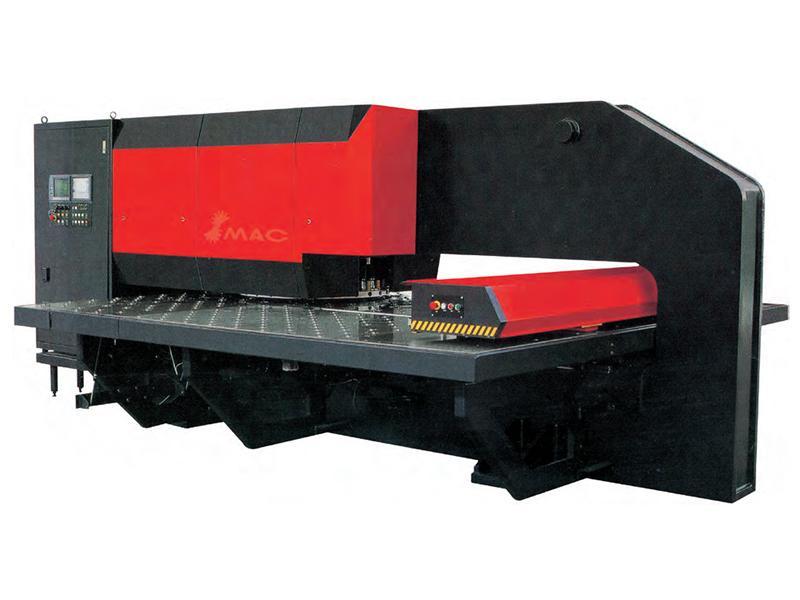

The mechanical sheet metal turret punch press uses a principle axis with a high precision and large stroke. The reliable linear slide way is integrated into the propulsion system.
The turret punch press is equipped with a high quality clutch, which gives it more reliability.
The high precision turret enhances the efficiency, precision and service life of the punch press.
Full coverage turret improves its efficiency, precision and liftspan.
This punch press features an excellent rigidity and small deformation, due to its closed and combined frame.

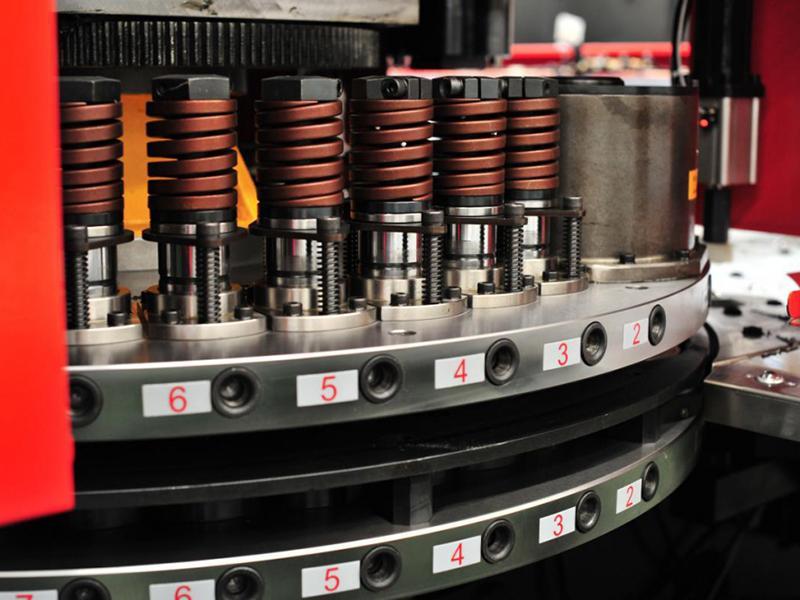

The bushed turnplate on the punch press features a high precision, and customers can choose from 24 or 32 workstations.

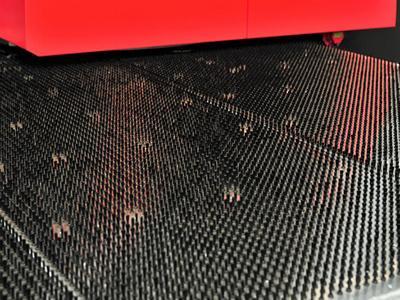

Workbench

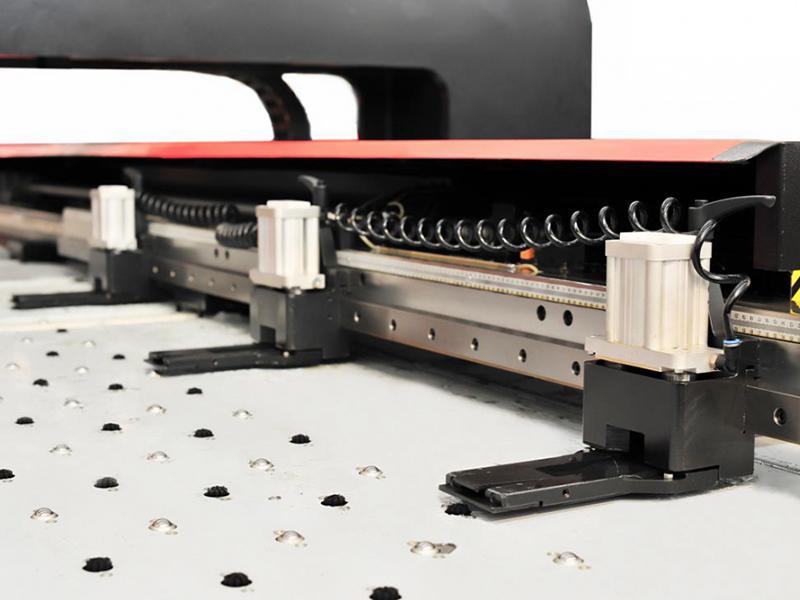

General clamp

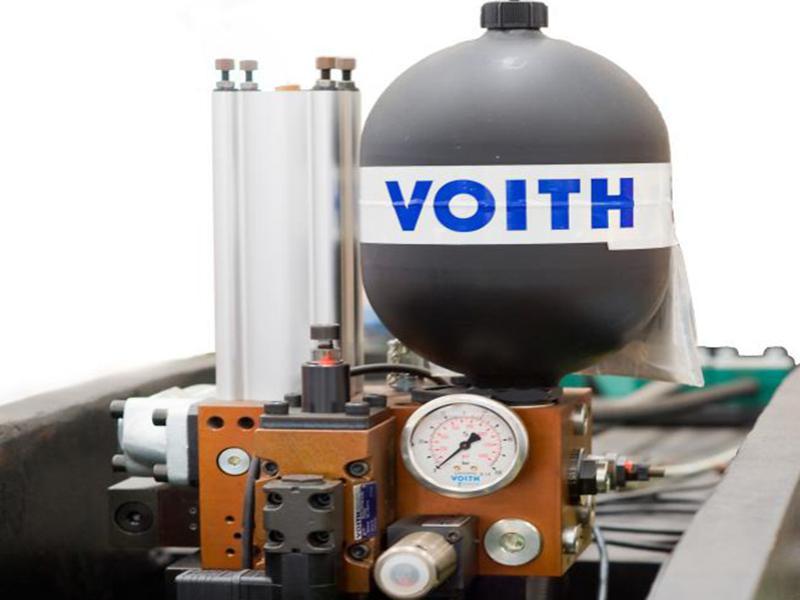

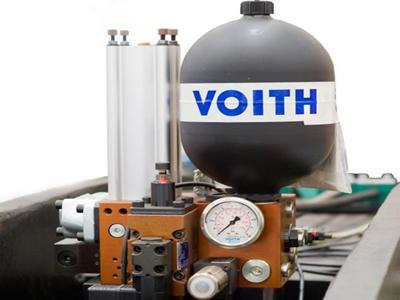

Hydraulic punch

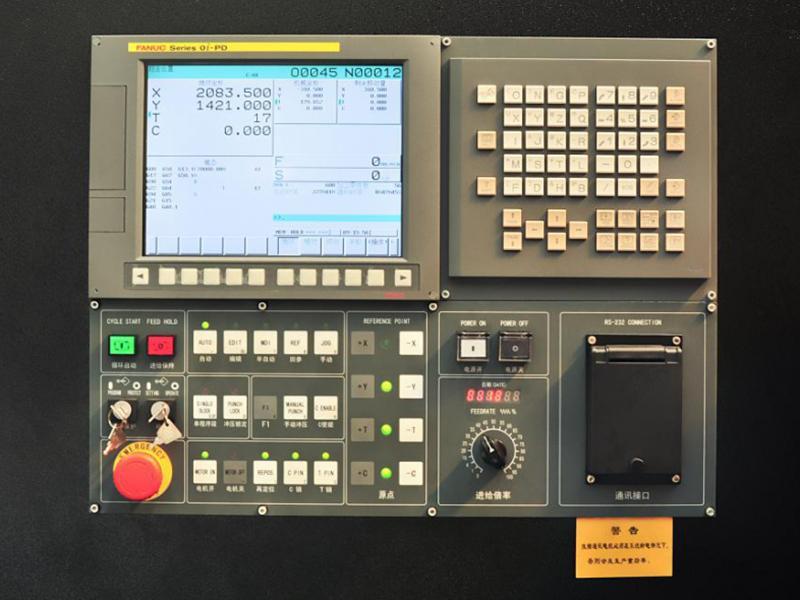

Fanuc system

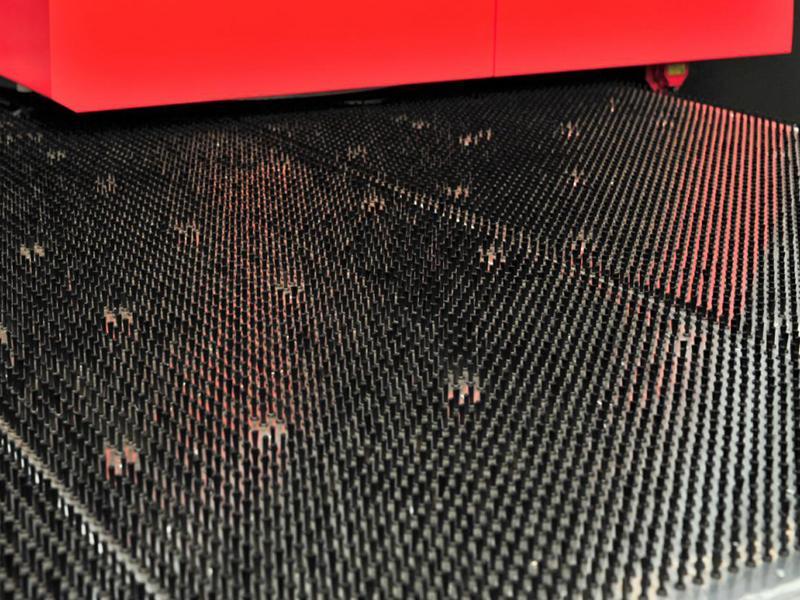

Turret
Technical Specifications
Parameter
HP-M300
Normal force (kN)
300
Max. sheet metal size (mm)
1250*2500
1250*2500
1550*2500
Max. sheet metal thickness (mm)
6.4
6.4
6.4
Max. punch Diameter (mm)
Φ88.9
Φ88.9
Φ88.9
Workstation no.
32
32
32
Pitch precision (mm)
±0.10
±0.10
±0.10
Max. sheet metal moving speed (m/min)
68
68
68
Turnplate speed (rpm)
30
30
30
Control shaft number (no.)
300
300
300
CNC model
4
4
4
Rotating workstation (no.)
BECKHOFF
BECKHOFF
BECKHOFF
Boundary dimension (mm)
2
2
2
Frame dimension
5020*2680*2600
5020*5000*2600
5020*5000*2600
Type
O-TYPE
O-TYPE
O-TYPE

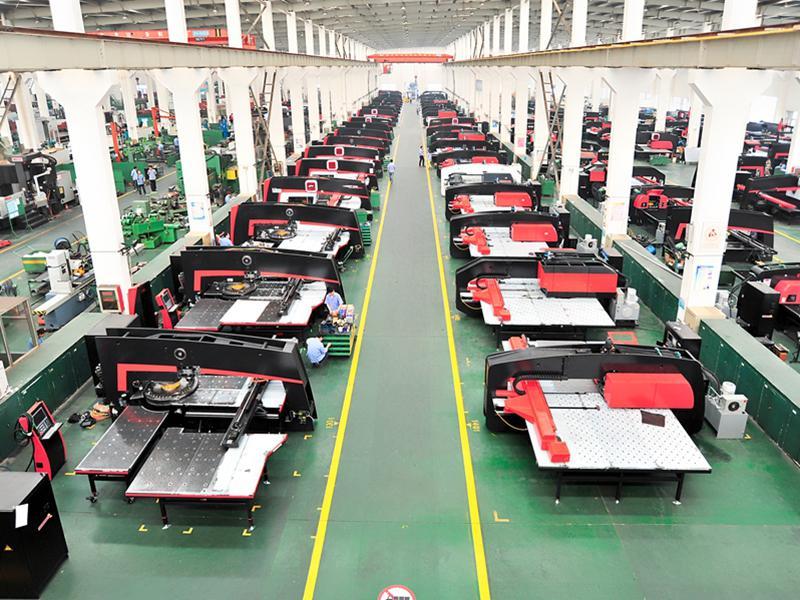

Factory
Index
metal punching, CNC turret press, mechanical press
