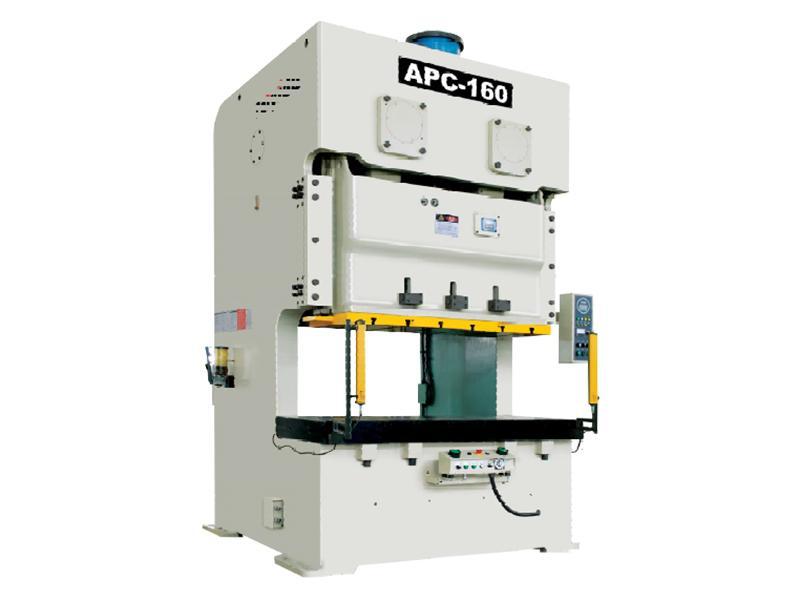

APC 110-200 Ton Precision Metal Stamping Press

Characteristic

The APC 110-200 ton precision metal stamping press was developed and manufactured with a strong steel structure and welded using high quality steel plate. The stamping unit features stable precision and reliability after eliminating the internal stress of the material.
The transmission center and metalworking machine tool center are located in the same spot, so that the stamping press can optimize precision and stability.
A symmetrical balancer is used to ensure operational stability.
The precision of die height adjustment is as high as 0.1 mm, so the stamping press can be operated safely, conveniently and reliably.
The parts, like bent axle, gear systems, connecting rod, etc., have high integrality and abrasive resistance after hard-anodized and grinding process.
Sensitive and reliable clutch/brake, excellent double solenoid valve and overload protector are used to ensure the precision and safety of the start and stopping of the slide.
Equipped with high-precision gears, the stamping press produces minimal noise during operation.

Technical Specifications

Name	Model	APC-110
Type		Type V	Type H
Capacity	Ton	110
Rated tonnage point	mm	5	3
Stroke	mm	180	110
Stable speed	s.p.m	35-65	50-100
Max. die height	mm	400	435
Slide adjustment	mm	100
Bolster area	mm	1800 × 650 ×130
Slide area	mm	1400 × 500 × 70
Main motor	kW	11
Presses weight	Ton	14.2
Air pressure	kg/cm2	5
Presses precision		JIS(CNS) 1 class
Die cushion capacity		Two plate & two cylinders
Capacity	Ton	3.6 × 2
Air pressure	kg/cm2	6.5
Stroke	mm	70
Die cushion work part dimension	mm2	350 × 235 × 2

Name	Model	APC-160
Type		Type V	Type H
Capacity	Ton	160
Rated tonnage point	mm	6	3
Stroke	mm	200	130
Stable speed	s.p.m	30-55	40-85
Max. die height	mm	450	485
Slide adjustment	mm	100
Bolster area	mm	2000 × 760 × 150
Slide area	mm	1600 × 550 × 70
Main motor	kW	15
Presses weight	Ton	20
Air pressure	kg/cm2	5
Presses precision		JIS(CNS) 1 class
Die cushion capacity		Two plate & two cylinders
Capacity	Ton	6.3 × 2
Air pressure	kg/cm2	7.2
Stroke	mm	70
Die cushion work part dimension	mm2	410 × 260 × 2

Name	Model	APC-200
Type		Type V	Type H
Capacity	Ton	200
Rated tonnage point	mm	6	3
Stroke	mm	250	150
Stable speed	s.p.m	25-45	35-70
Max. die height	mm	500	550
Slide adjustment	mm	120
Bolster area	mm	2400 × 840 × 170
Slide area	mm	1850 × 650 × 95
Main motor	kW	18.5
Presses weight	Ton	27.5
Air pressure	kg/cm2	5
Presses precision		JIS(CNS) 1 class
Die cushion capacity		Two plate & two cylinders
Capacity	Ton	10 × 2
Air pressure	kg/cm2	6..75
Stroke	mm	80
Die cushion work part dimension	mm2	540 × 350 × 2

Name	Model	APC-250
Type		Type V	Type H
Capacity	Ton	250
Rated tonnage point	mm	7	3.5
Stroke	mm	280	170
Stable speed	s.p.m	20-35	30-60
Max. die height	mm	550	605
Slide adjustment	mm	120
Bolster area	mm	2700 × 900 × 170
Slide area	mm	2100 × 700 × 95
Main motor	kW	22
Presses weight	Ton	45.5
Air pressure	kg/cm2	5
Presses precision		JIS(CNS) 1 class
Die cushion capacity		Two plate & two cylinders
Capacity	Ton	14 × 2
Air pressure	kg/cm2	9
Stroke	mm	100
Die cushion work part dimension	mm2	640 × 470 × 2

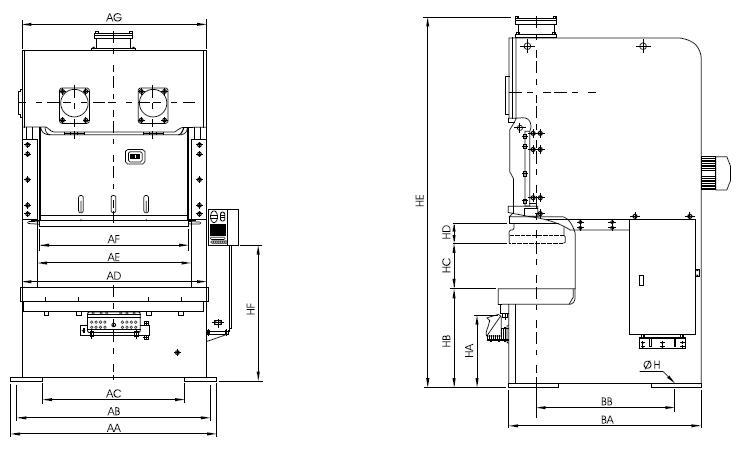

Boundary Dimension

Standard and Optional Configuration

High performance dry clutch & brake	High performance wet clutch & brake
Standard operating system of Kinston	Die cushion
Operation mode selection/off/inching	Vs motor
Safety one stroke/continuous	Touch screen devices
Hydraulic overload protector	Safety light curtain
Overrun detector	Slide knock-out device
Dual solenoid valve	Main motor reversing circuit
Missfeed detector	Foot switch
Motorized slide adjustment	Safety die block with plug
Digital die height indicator (unit 0.1 mm)	Portable 2-hand push
Motorized grease pump	Inverter
Total counter, 6 digits	Anti-vibration amounts
Preset counter, 6 digits	Quick die change system
Maintenance counter,4 digits	Upper die clamper
Life counter, 6 digits	Lower die clamper
Electronic rotary cam switch (6 spare channel)	Die lifter
Air ejector 1/2" one channel	Die arm
Air source receptacle 1/2" two channel	Anchor bolts & foundation plates

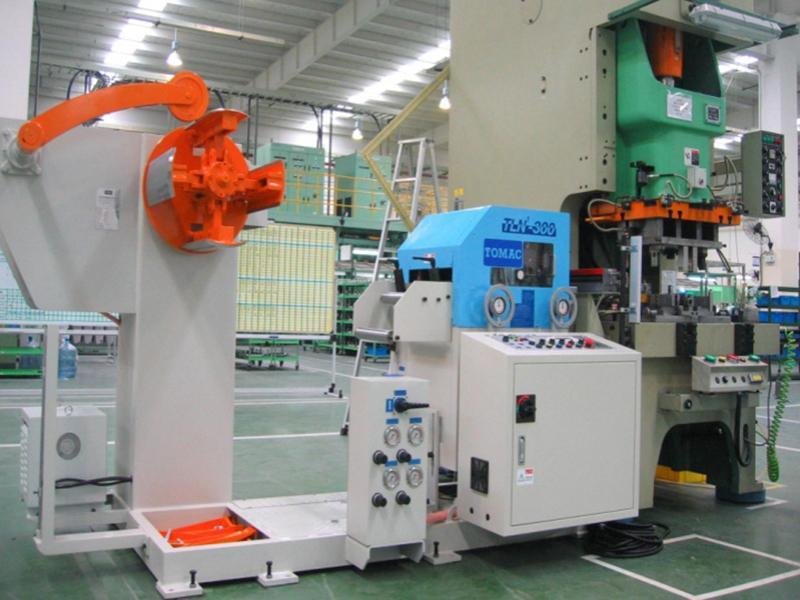

Missfeed detection circuit	Automatic feed equipment
Power receptacle (available only for single phase 110 V power source wiring by user)	NC straightener feed c/w uncoiler (3 in 1)
	NC roller feeder
	Straightener c/w uncoiler (2 in 1)
	Straightener

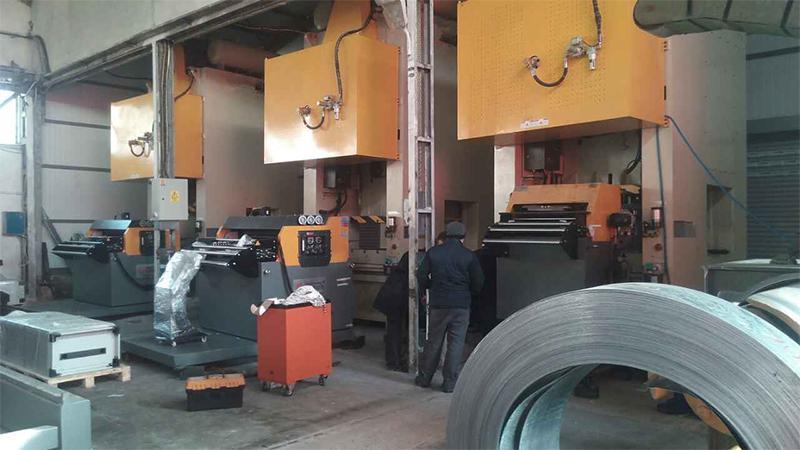

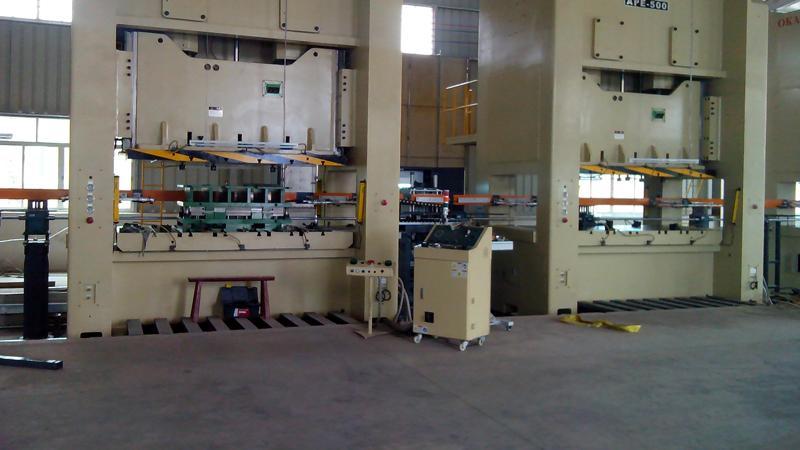

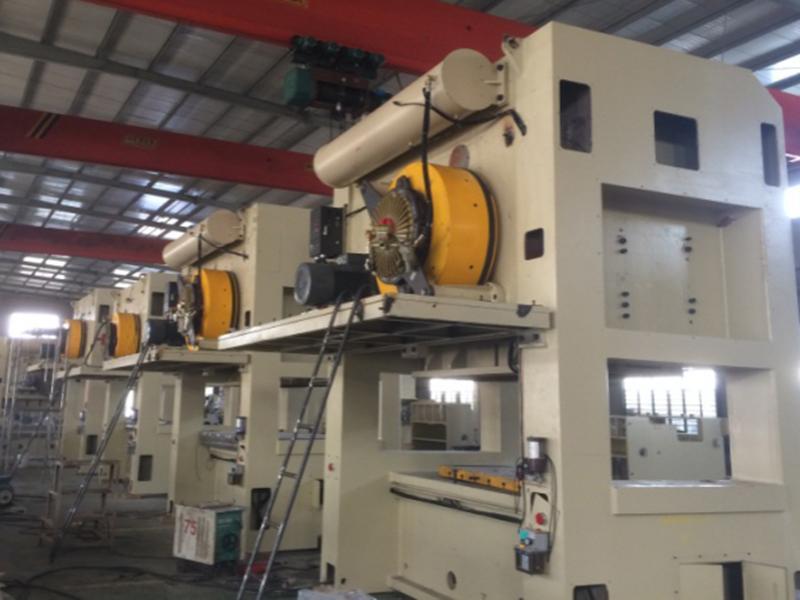

Customer Case about metal stamping press
